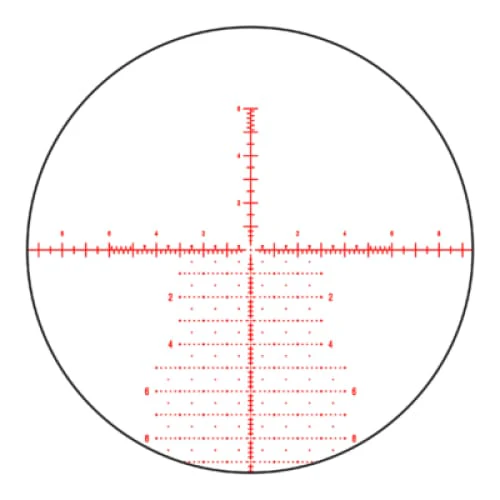

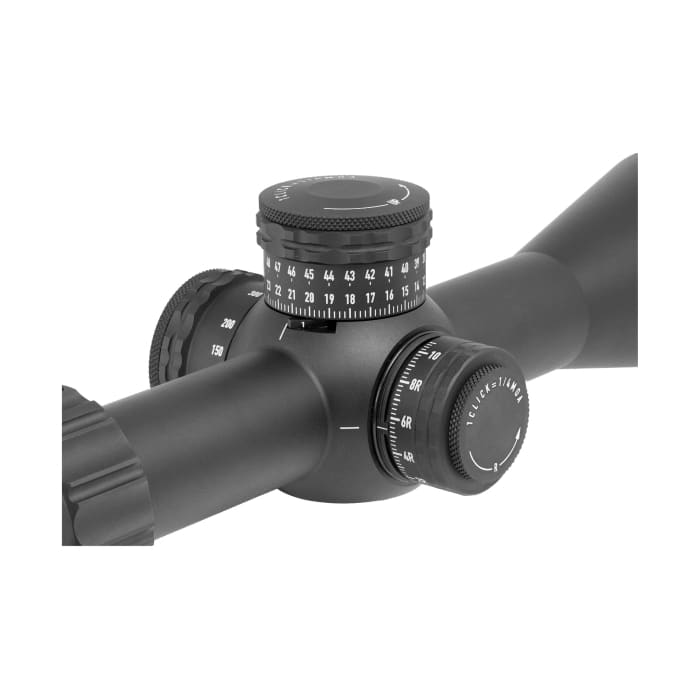

he word “NEXUS” means “focal point”, and that is what this model is to the ELEMENT OPTICS range. The GEN II takes the DNA of the first generation NEXUS and pushes it to another level with a 4-25x Magnification, a new Turret System and Digital Illumination – the ultimate 30mm riflescope. A variety of different reticle designs in both MOA and MRAD cater to all shooters: Simplified options are easy on the eye, while more complex designs allow experienced shooters to hold off with precision. Our design team of global competition winners & hunters understand optics, and have introduced strict quality control measures to ensure perfect operation under testing conditions. And if something goes wrong? Our Platinum Lifetime Warranty has you covered – No paperwork or registration required.

MAGNIFICATION RANGE	4-25x
TUBE DIAMETER	30mm
OBJECTIVE LENS DIAMETER	50mm
EXIT PUPIL	7.1-2.0mm
EYE RELIEF	77-92mm (3.0-3.6”)

FIELD OF VIEW	@100yds: 29.2-4.7 ft	@100m: 9.7-1.6m
CLICK VALUE	1/4 MOA (20 MOA / REV)	1/10 MRAD (10 MRAD / REV)
ELEVATION ADJUSTMENT RANGE	100 MOA	29 MRAD
WINDAGE ADJUSTMENT RANGE	40 MOA	11.6 MRAD
MINIMUM PARALLAX	10 YDS	10 METERS
LENGTH	13.8”	350mm
WEIGHT	30.7oz	870g
